Flat Bed / Bale Trailers & Stock Boxes
Our pallet/bale (flat bed) trailers range from 6 tonnes to 18 tonnes, making them extremely versatile.
Built using over 20 years experience in Wales
Custom built
Competitively priced
Aftersales services
Trailer Features
16mm rope hooks
Lashing rings
LED lights
Flashing beacon
Number plate lights
Spring suspension
Call us on
01269 832999
All of our flats have standard Checker plate floor, box 100 x 50 side rail, box section cross members, 4 x per plate. Fully welded floors, adjustable rear bale bumper, standard bale bumper at front or optional large rack or headboard with rack on top.

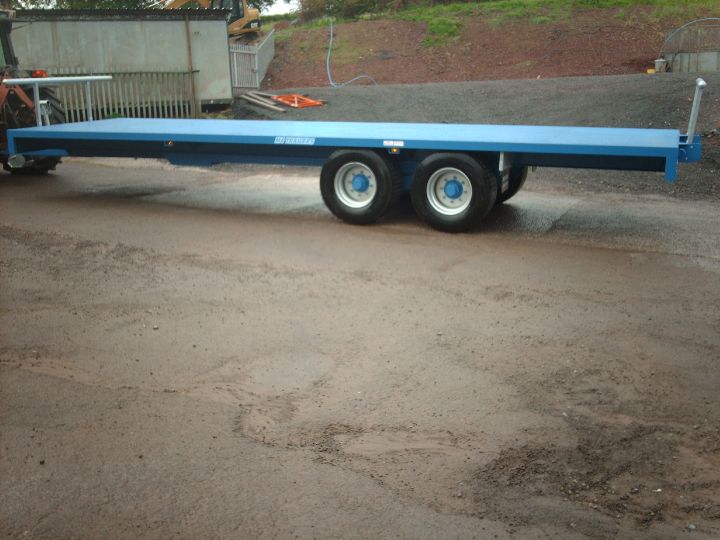

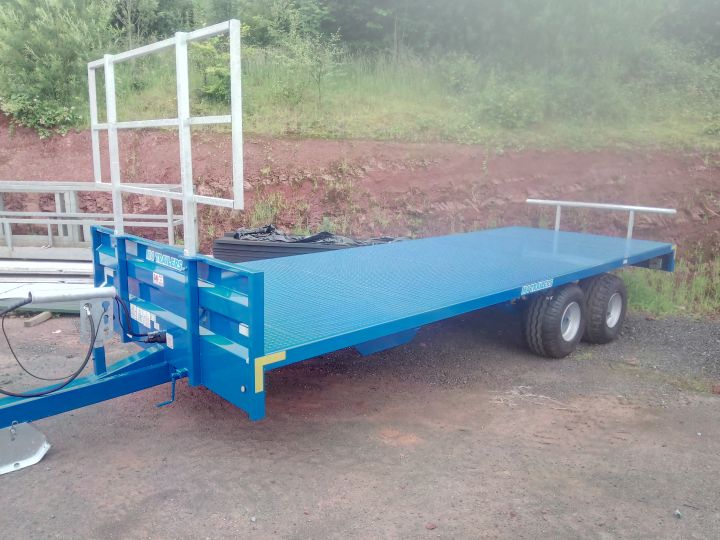

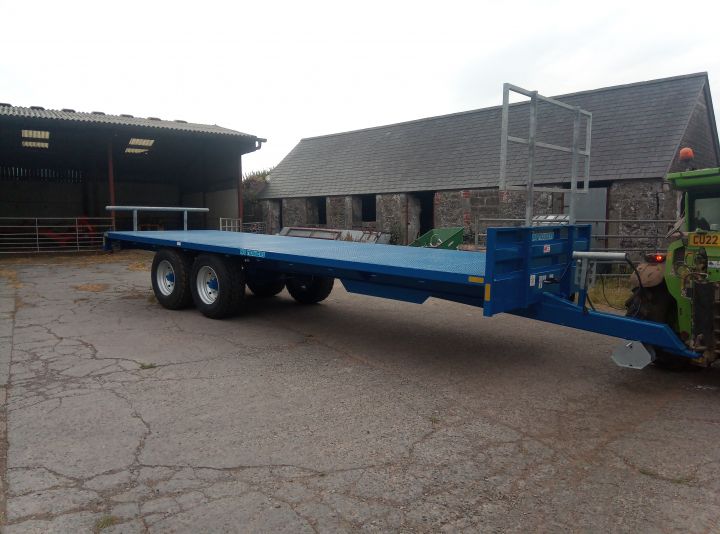

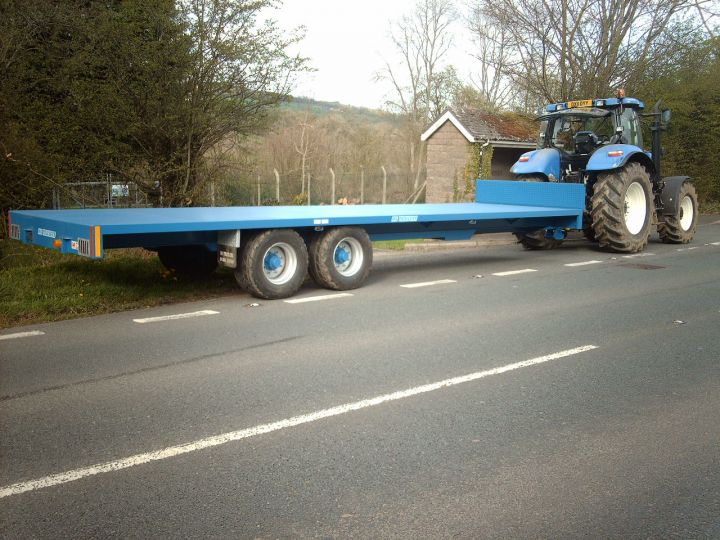

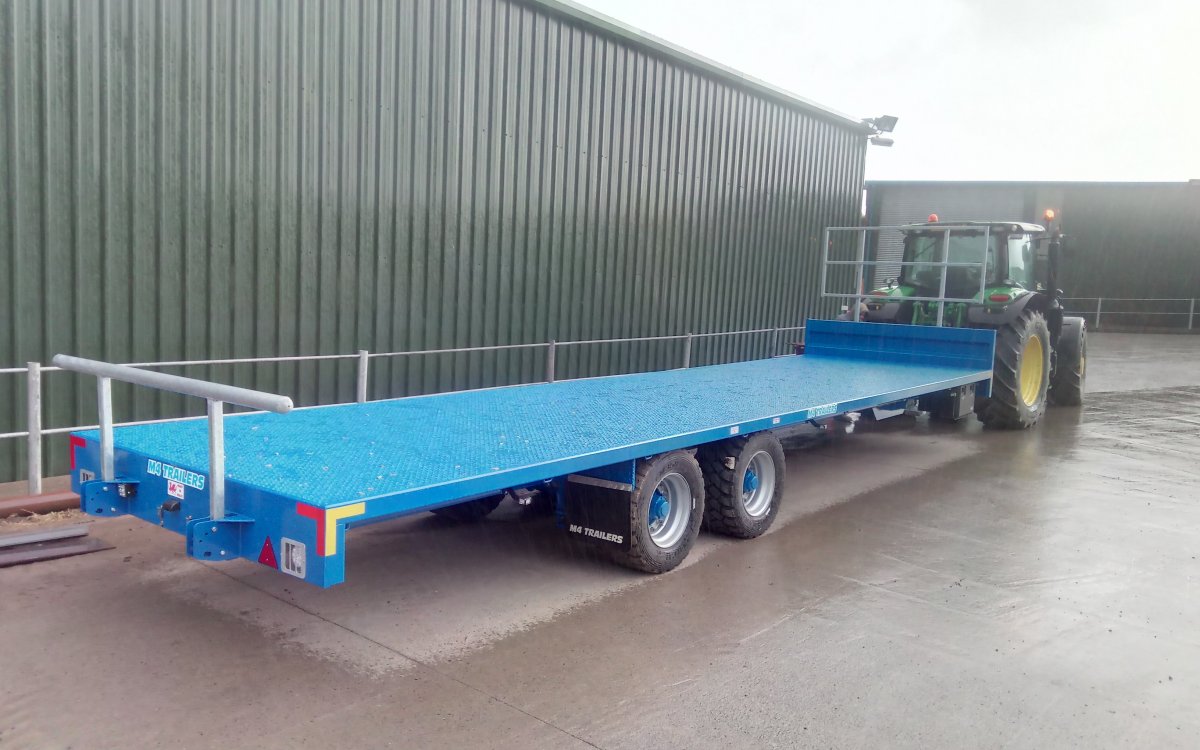

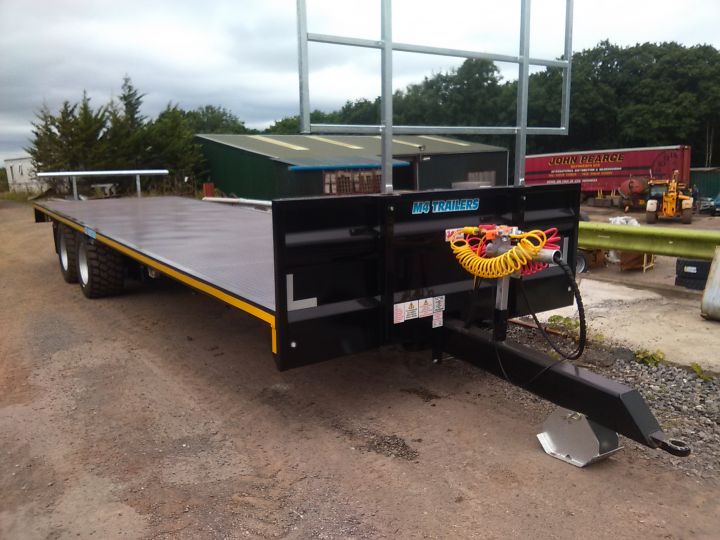

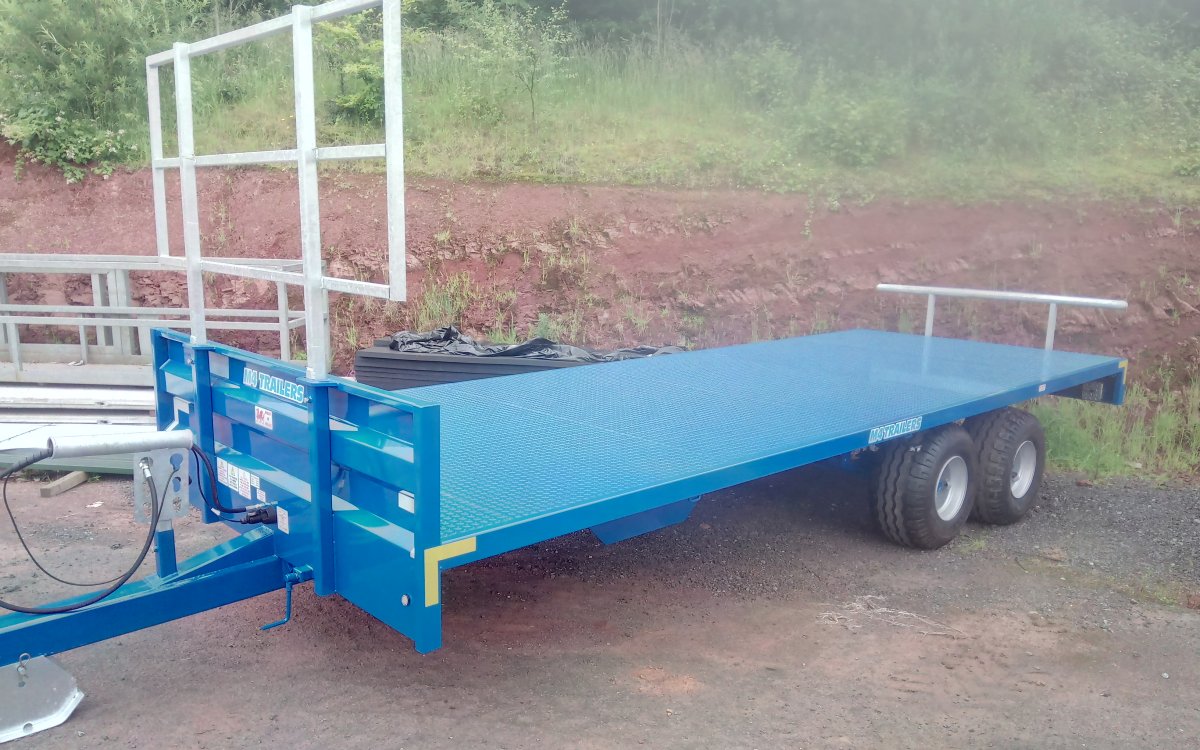

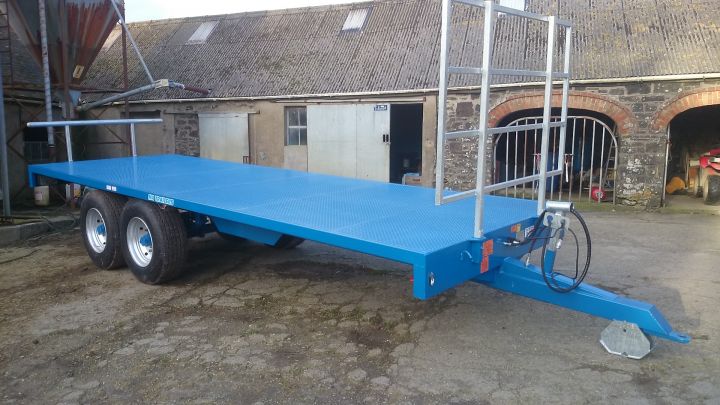

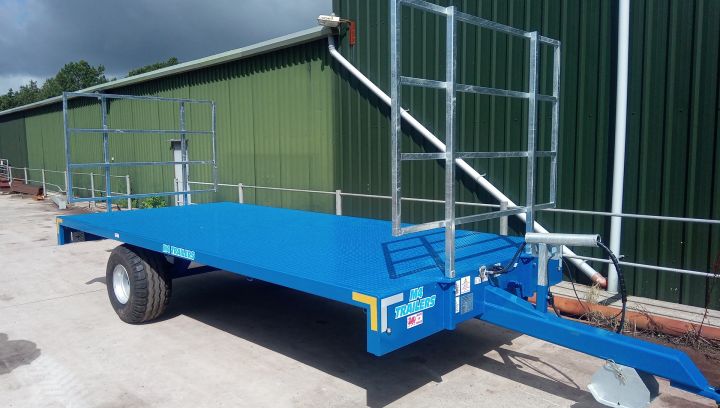

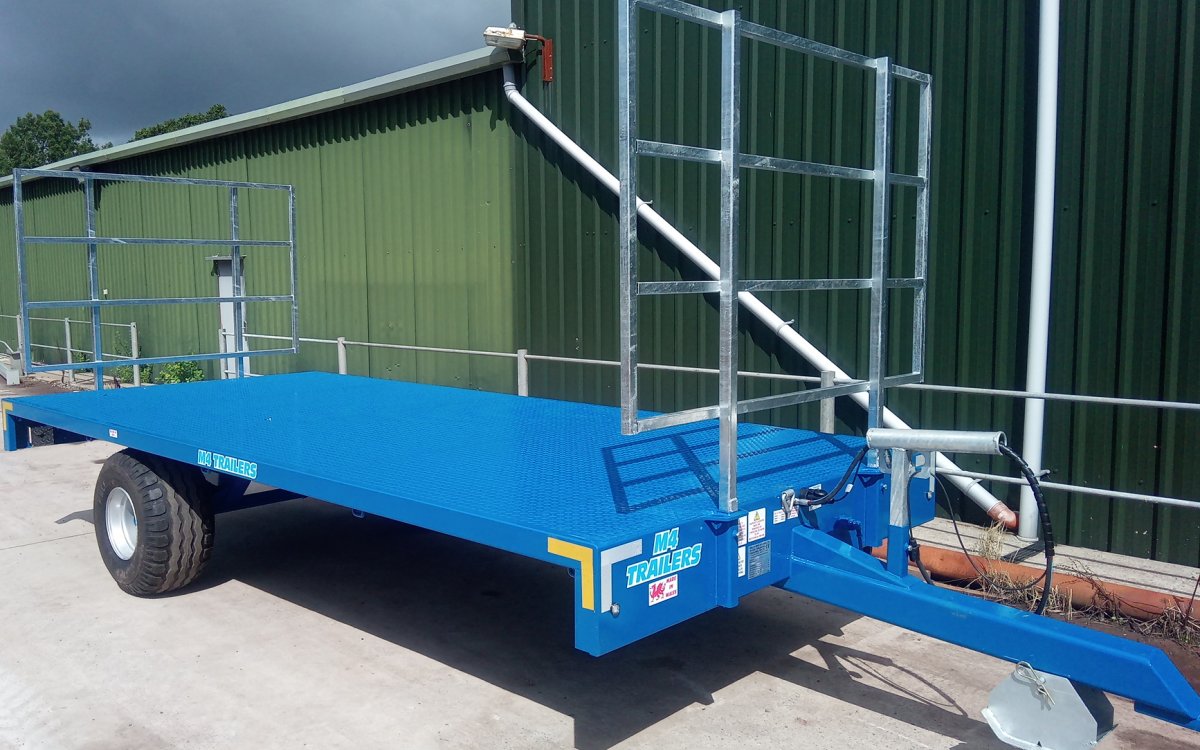

Flat Bed & Bale Trailer Models
Body length: 18ft
Body width: 8ft
Axle: 1x6 stud
Brakes: 300x60
Tyres: 400x15.5
Body length: 22ft
Body width: 8ft
Axle: 1x6 stud
Brakes: 300x60
Tyres: 12.5x80x15.3 or 400x60x15.5
Body length: 26ft
Body width: 8ft
Axle: 2x6 stud
Brakes: 300x60
Tyres: 400x15.5
Body length: 26ft
Body width: 8ft
Axle:2x8 stud
Brakes: 350x60 or 400x80 or 420x180 comm
Tyres: Super singles 385x65x22.5, or 435x50x19.5 or 560x40x22.5
Body length: 26ft
Body width: 8ft
Axle:2x10 stud
Brakes: 400x80 or 420x180
Tyres: Super singles 385x65x22.5, or 435x50x19.5 or 560x40x22.5
Body length: 28ft
Body width: 8ft
Axle:2x10 stud
Brakes: 400x80 or 420x180
Tyres: Super singles 385x65x22.5, or 435x50x19.5 or 560x40x22.5
Body length: 30ft
Body width: 8ft
Axle:2x10 stud
Brakes: 420x180 comm
Tyres: Super singles 385x65x22.5, or 435x50x19.5 or 560x40x22.5
Body length: 32ft
Body width: 8ft
Axle:2x10 stud
Brakes: 420x180 comm
Tyres: Super singles 385x65x22.5, or 435x50x19.5 or 560x40x22.5

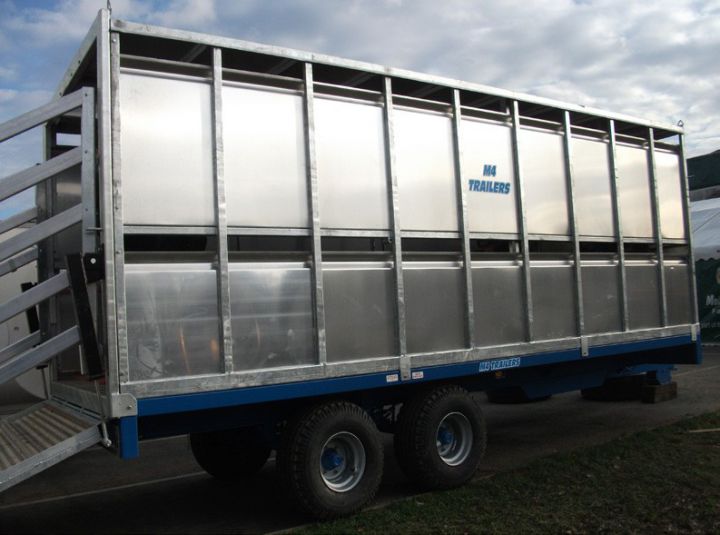

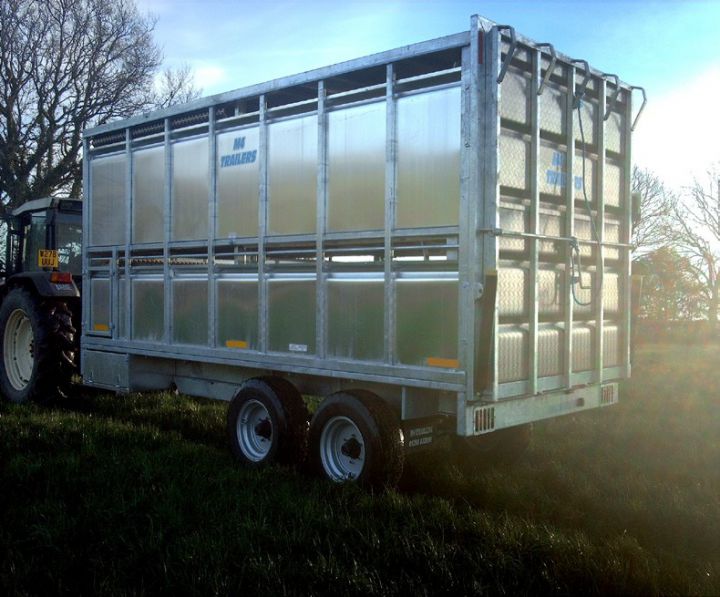

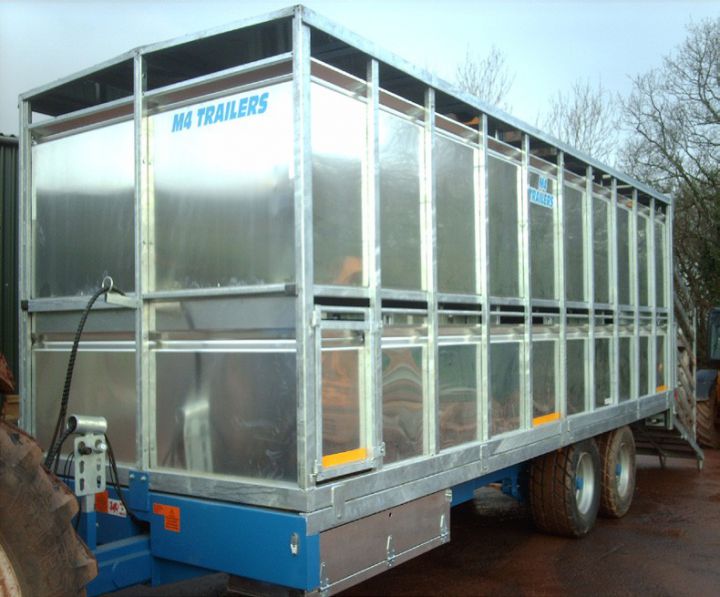

Stock Trailer Models
Radial Tyres
435 x 50 x 19.5 tyres with curved corners.
400 floatation tyres
435 x 50 x 19.5 tyres.
Commercial axles
Sprung drawbar
Storage box
Standard Features
Rope hooks
Lashing rings
Bulkhead fittings
Flashing beacon
Optional Extras
We can make bespoke trailers but the following are the most popular optional extras.
Bale Bumper
Large Rack
Large Rack Cranked

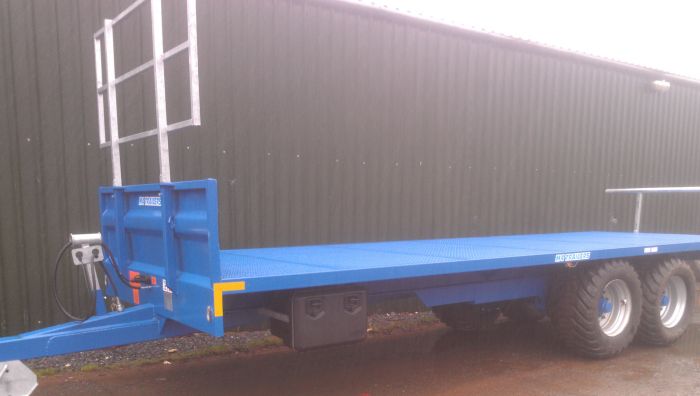

Flat Headboard & Rack
Tyre Sizes
Oversized tyres for the 6, 8 and 10 tonnes models:
400 x 65 x 15.5 (14 Ply) and 340 x 65 x 18 (road tyre)
Oversized tyres for the 12 and 14 tonnes models:
550 x 45 x 22.5 (Floatation) and 435 x 50 x 195 (road tyre)
Axles sizes
Call us on
01269 832999
