Grass & Grain Trailers
Extremely versatile Grass & Grain agricultural trailers range

Grass & Grain Trailers

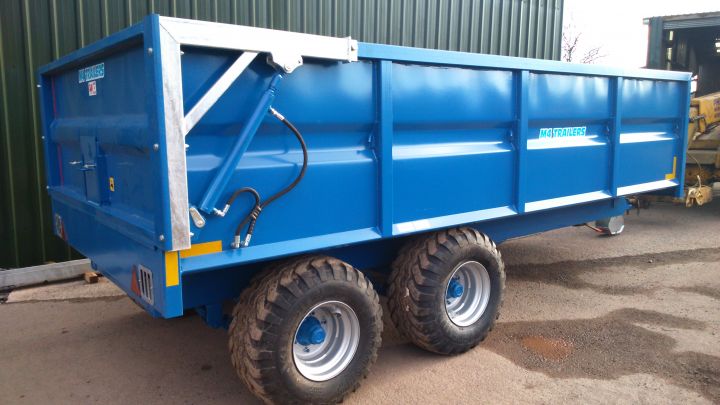

Our grass & grain trailers have a high-capacity monocoque-body design and are ideal for transporting a range of materials.

Built using over 20 years experience in Wales
Custom built
Competitively priced
Aftersales services



Trailer Features

Hydraulic brakes
LED lights
Flashing beacon
Number plate lights
Protected rear lights to prevent damage



Call us on
01269 832999

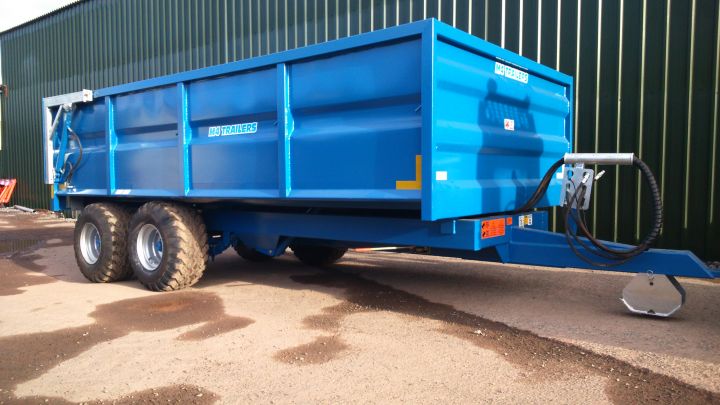

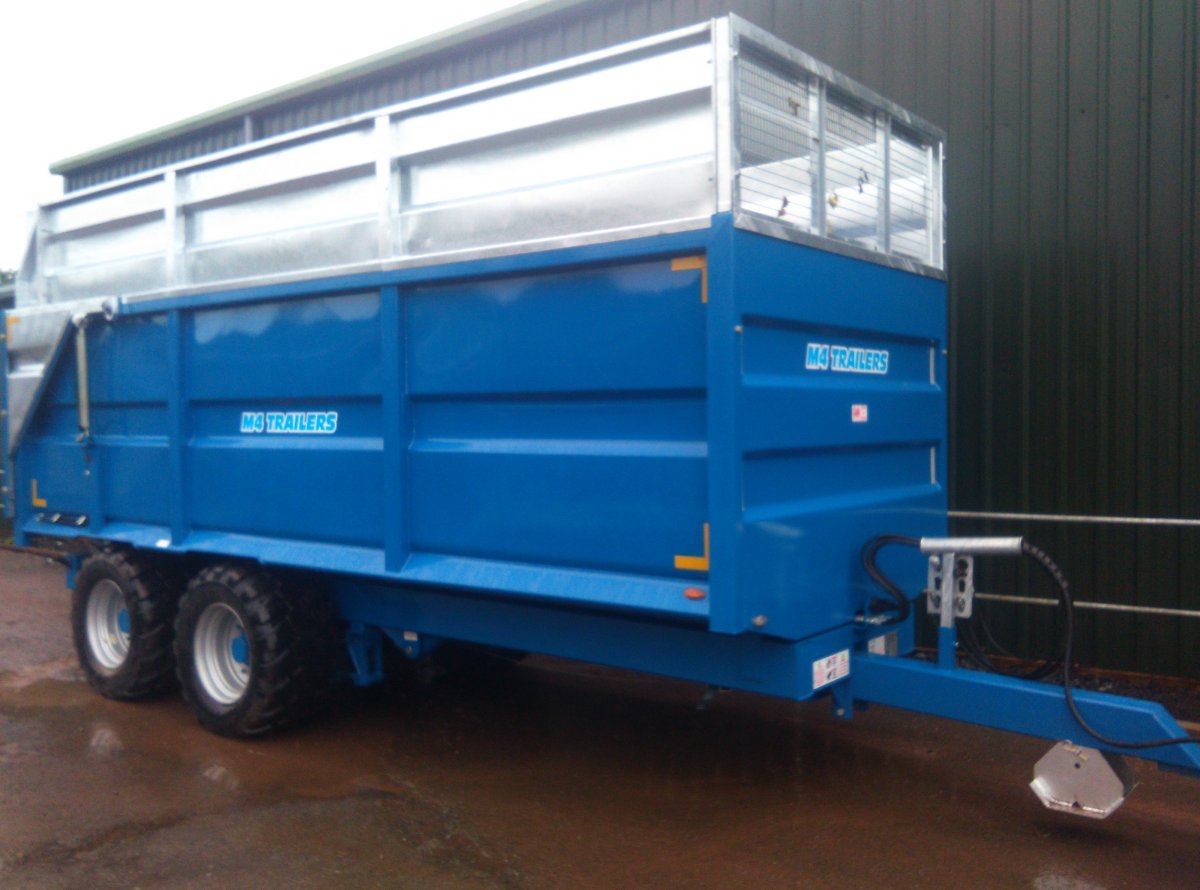

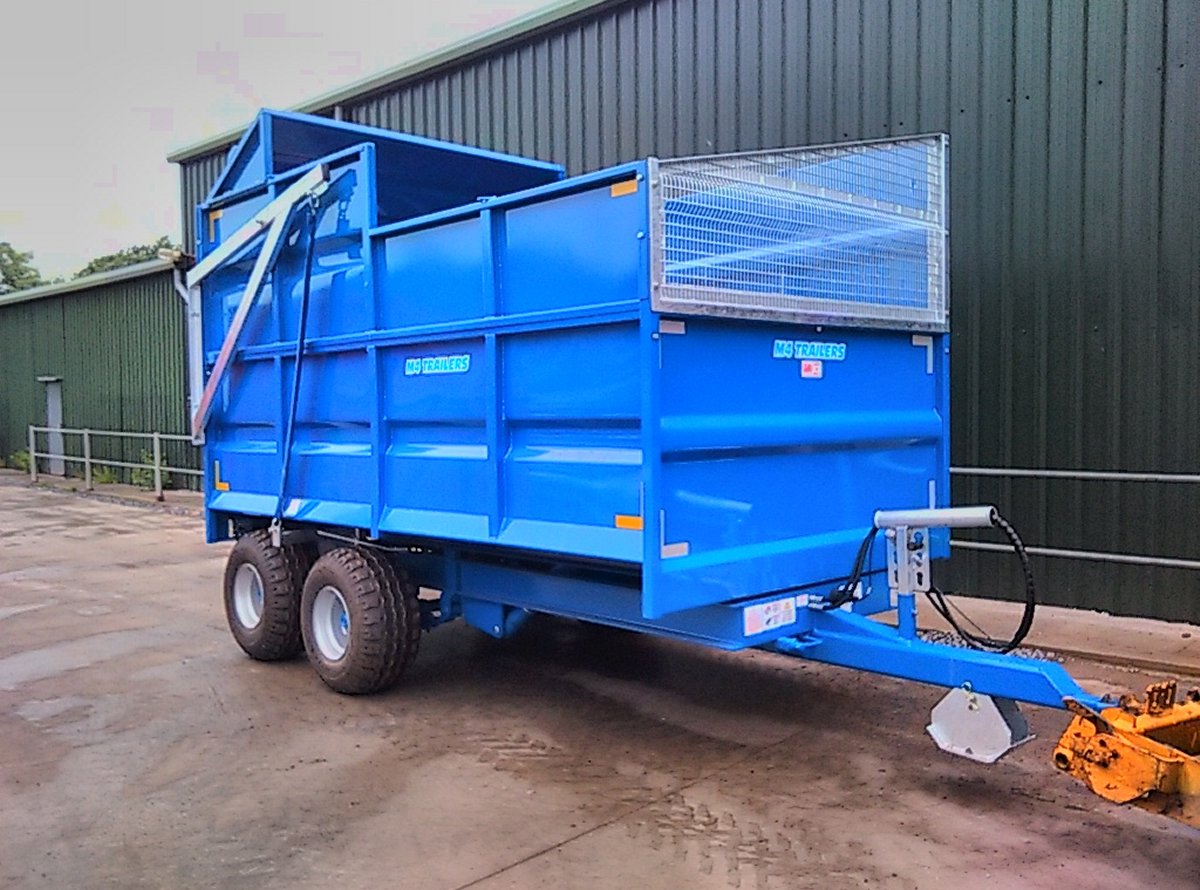

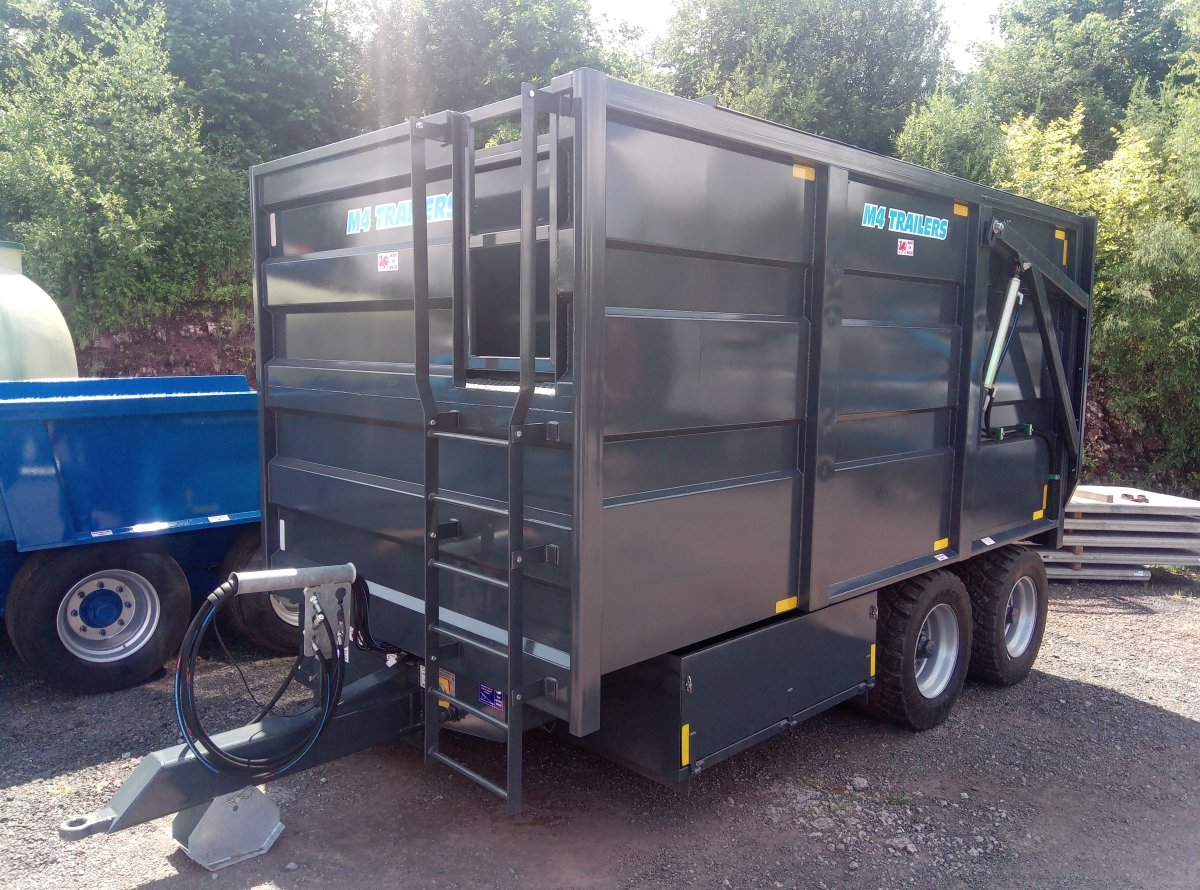

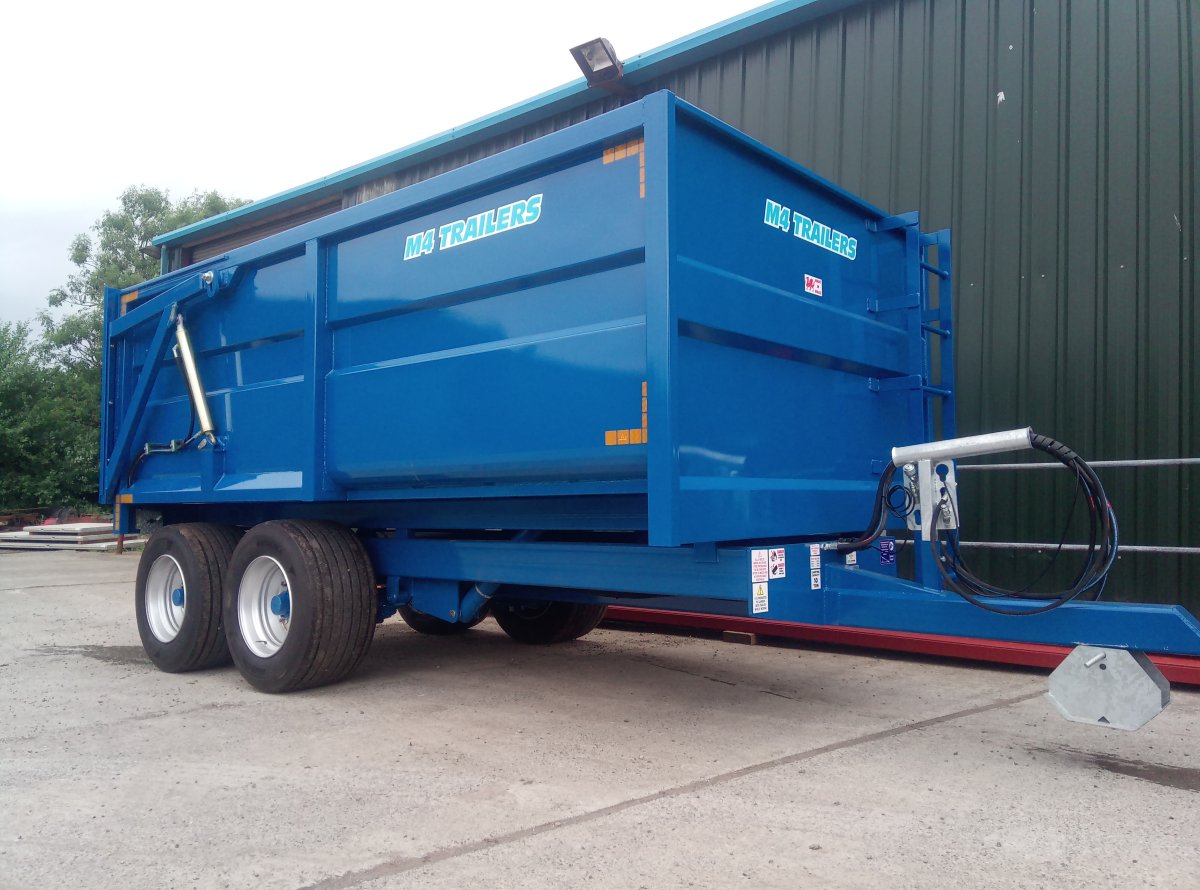

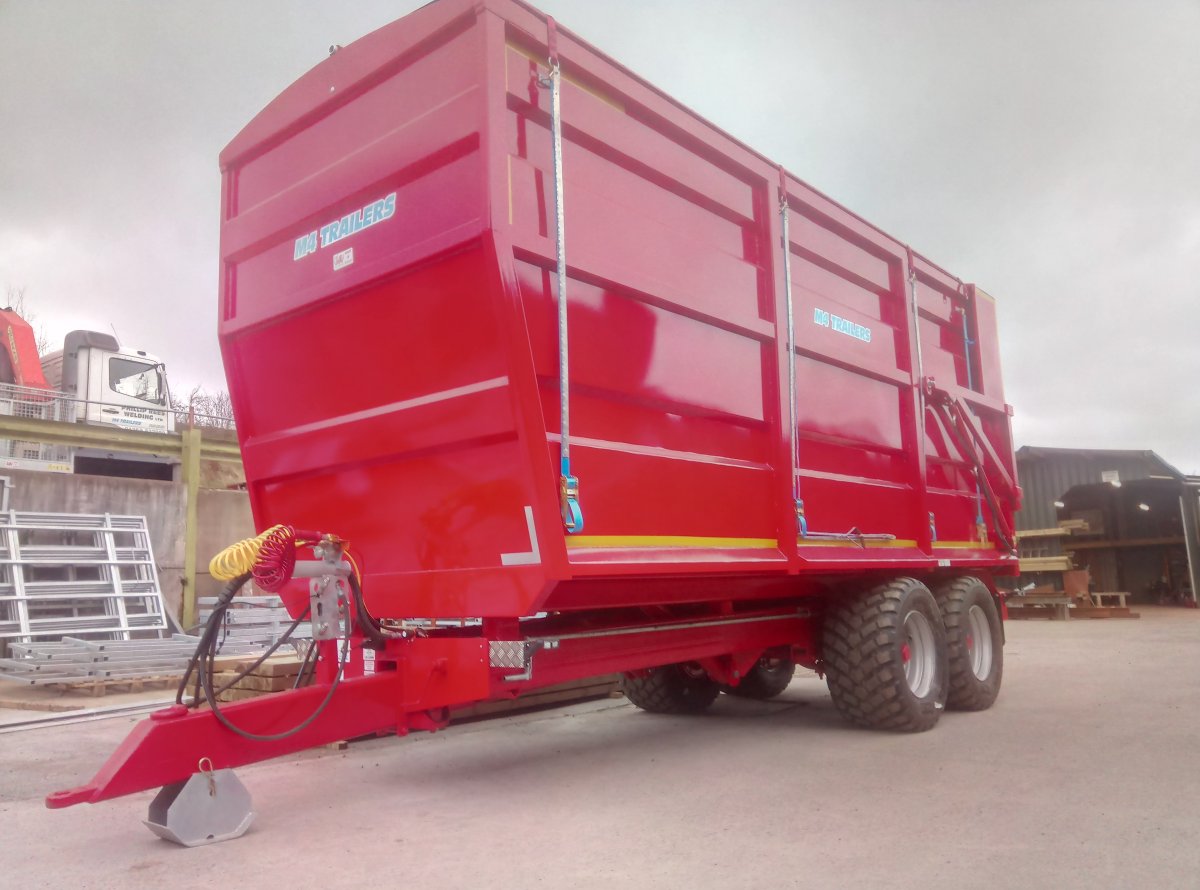

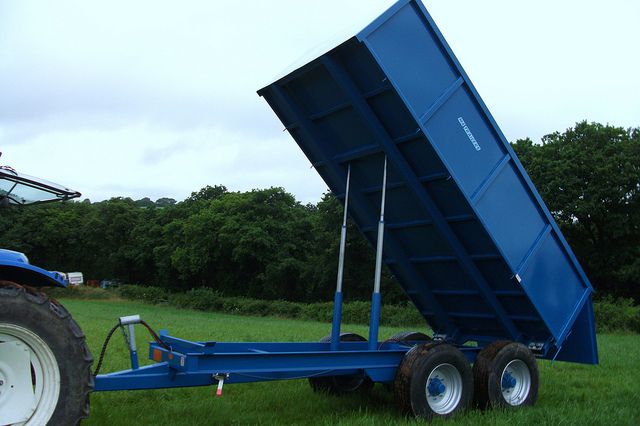

Our grass & grain trailers are built as standard with box frame work with cross members at every 18". All but the 6 ton are twin ram and come on a spring suspension. Standard 5mm floor and 3mm sides up to 12 ton the 4mm sides for the 14 & 16 ton.



Grass & Grain Trailers Models



View Details

Body length: 18ft or 20ft
Body width: 8ft
Axle: 2x10 stud
Brakes: 405x185 comm
Tyres: Super Singles or 550x45x22.5
Grain Sides: 42" sides
Grass Sides: 7' 6" sides

View Details

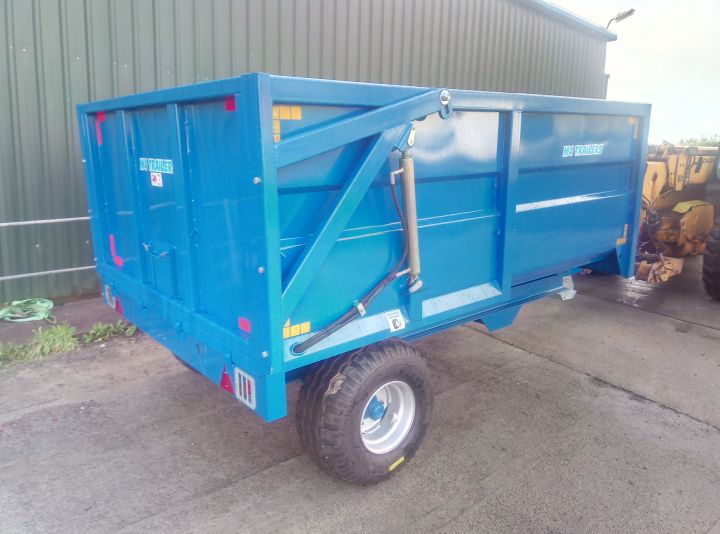

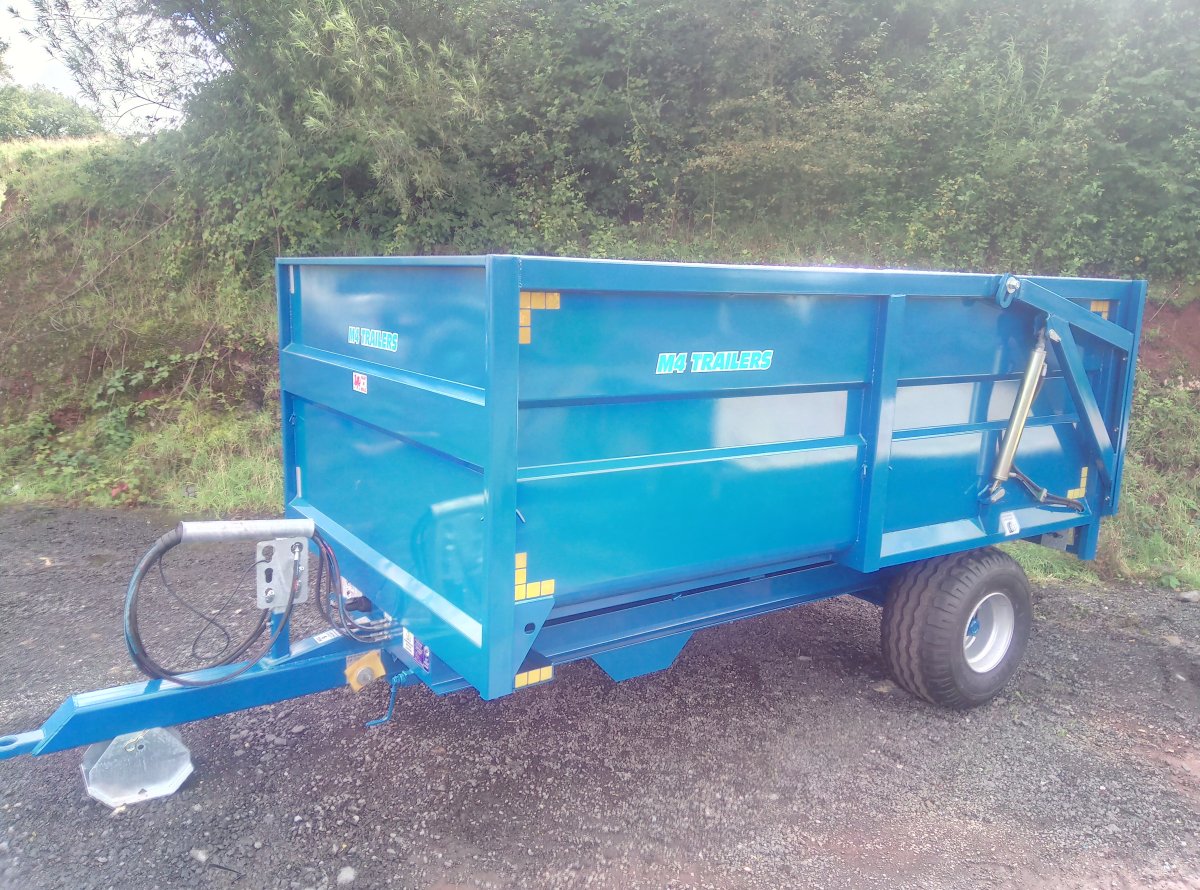

Body length: 12ft
Body width: 7ft 6"
Axle: 1x6 stud
Brakes: 300x60
Tyres: 12.5x80x15.3

View Details

Body length: 14ft
Body width: 7ft 6"
Axle: 2x6 stud
Brakes: 300x60
Tyres: 12.5x80x15.3 or 400x15.5

View Details

Body length: 14ft or 16ft
Body width: 8ft
Axle: 2x6 stud or 2x8 stud
Brakes: 300x60 or 300x90
Tyres: 400x15.5 or Super Singles

View Details

Body length: 16ft
Body width: 8ft
Axle: 2x8 stud
Brakes: 400x80
Tyres: Super Singles or 550x45x22.5

View Details

Body length: 16ft or 18ft
Body width: 8ft
Axle: 2x10 stud
Brakes: 405x185 comm
Tyres: Super Singles or 550x45x22.5

Standard Features

Rope hooks

Lashing rings

Bulkhead fittings

Flashing beacon



Optional Extras

We can make bespoke trailers but the following are the most popular optional extras.



Tyre Sizes

Oversized tyres for the 6, 8 and 10 tonnes models:
400 x 65 x 15.5 (14 Ply) and 340 x 65 x 18 (road tyre)

Oversized tyres for the 12 and 14 tonnes models:
550 x 45 x 22.5 (Floatation) and 435 x 50 x 195 (road tyre)


Axles sizes
